Brief History of Oil Development in Pico Canyon

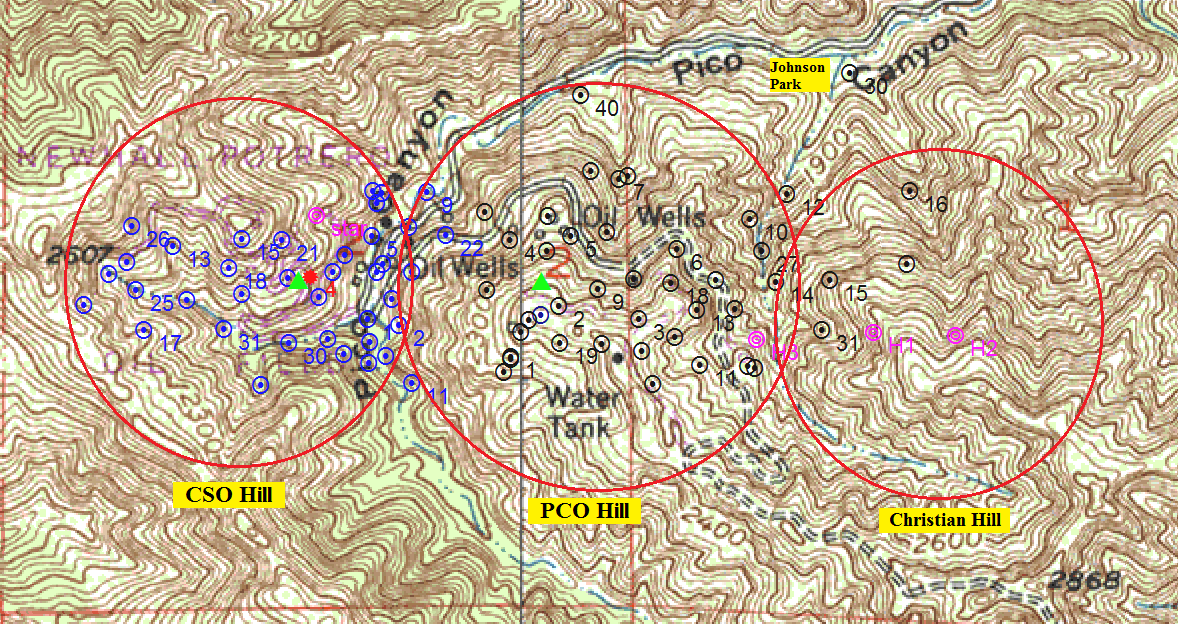

Topographic map of Pico Canyon showing the locations for the following web pages. The blue and red circles were oil wells. There were almost 80 oil wells drilled in Pico Canyon starting in 1876 so the map is quite crowded with dots. CSO 4 is located at the solid red dot. The other red dots are for CSO 1, 2, 3, and 5, all of which were located almost at the level of the creek bed.

The Tatavium were probably the first humans to use petroleum seeping from Pico Canyon.

In 1865, two Mexicans, Ramon Perea and Jesus Hernandez, were supposedly hunting a deer (or bear - Salvator, 1929) in Pico Canyon. They noticed an oily substance. For some reason they thought it was important so they hurried off to the San Fernando Mission to show Andres Pico (or to J. del Valle in Camulos depending on the source of the story). Ex-Civil War surgeon Dr. Vincent Gelcich, who was married to a niece of Andres Pico and who happened to be at the Mission, recognized the stuff as oil seepage from his previous experience with oil in Pennsylvania. The del Valle story has del Valle showing it to Pico and Gelcich.

From the Bakersfield Californian of 10/28/1918 comes:
A Mexican named Ramon Perea found a black, sticky fluid flowing from the side of Pico Canyon. He gathered some of it in a canteen and showed it to J. del Valle, who was living then on the Camulos rancho near Piru. He in turn submitted it to Dr. Gelsich, formerly of Penn., who pronounced it petroleum. A company was formed for its exploitation, and placer claims staked out and filed on. Perea was given an interest in it for the discovery, but before operations began he traded his interest for a barrel of cheering spirits and a twenty-dollar gold piece, according to old inhabitants of Newhall.
Pico, Gelcich, and the other men decided to stake claims in the various canyons. How and why the other men got involved is not explained. In 1865, placer mining claims were filed by Andres Pico, Henry C. Wiley (also related to Pico by marriage), Dr. Vincent Gelcich, Christopher Leaming, Sanford Lyon, Edward F. Beale, Robert S. Baker, Simeon S. Todd (a Civil War surgeon aquaintance of Gelcich), John Moore, and Rice. Later, in 1873 and 74, Gelcich bought the claims of Rice (Salvator, 1929). Oddly, if del Valle was involved, why didn't he join in filing a claim? And what about Towsley?

The first claims were named Canada Pico, Wiley, Moore, Rice, Leaming, Gelcich, and Todd (Salvator, 1929). However, little work was actually done on the claims.

The canyons were on public lands and placer claims were not really designed for oil. Also, homesteading was designed for agriculture and grazing, not for mineral rights. Earlier, Mother Lode miners had set up mining districts which were protected by the state and federal courts. So in 1865 the Los Angeles Asphaltum and Petroleum Mining District was formed by Beale, Pico, Gelcich, and others. Three months later (June 24, 1865), the San Fernando Petroleum Mining District was formed, headed by Christopher Leaming. These districts were formed to legalize the staking of claims for oil. Still, the claims remained in a confused state of affairs for many years to come.

The Fourth Annual Report of the State Mineralogist for 1884 states that in 1866 "Mr. Hughes bored for oil in Pico Canon, and struck a flowing well at 140 feet, but the tools became fast in the well and could not be extricated." This information was obviously taken from Stephen Peckham's 1866 report. Peckham spells the name "Hewes". He also places the Hughes claim east of, and 800 to 1000 feet above, Pico Springs. The Hughes claim was probably up the canyon that starts at Johnson Park and climbs south up the mountain. That canyon is called Hughes Canyon on two maps that I have seen. One map is in the 10th Report Of The State Mineralogist of 1890. The other map is from "Petroleum in California" by Prutzman from 1913 (see maps at bottom of this page).

At Pico Springs, Peckham (1866) reported that only a basin had been excavated to collect oil as it flowed from cracks in the canyon. The flow was an estimated 20 to 25 gallons per day.

Further on, the Fourth report states that "In 1867 Lyon and Jenkins returned to the claims they had examined ten years before. Jenkins went to Sespe and Piru; Lyon remained at Pico. Lyon's Station was named from him; he died in 1883."

According to Ripley (1948): "Mr. Lyon commenced operations by driving a tunnel into the hill near the level of the stream at a point where gas and oil where escaping. He drove a distance of 20 feet and he was forced to abandon it by gas. A well was then dug to collect the seepage which averaged about two barrels a day. This was all that was done (at that time) to develop the Pico oil springs." The well was dug using the spring-pole method.

Another source says that in 1868 Francisco Lopez showed H. C. Wiley, Sanford Lyon, and William W. Jenkins an oil seep deep in Pico Canyon, they obtained a lease from Beale and Baker, they formed a partnership in 1869, and began drilled a successful spring-pole well obtaining emerald green petroleum (Reynolds, 1985). There was no further drilling until the 1870's, but oil seepage was still collected and sold.

The Fourth Report also states that on January 28, 1867 "twelve barrels of crude oil were shipped from Pico Canon." The report later says that "among the specimens from California sent to the Paris Exposition of 1867 was petroleum from ... Wiley's Spring, San Fernando Mountain (Pico Canon), Hughes' Spring, and Pico Spring, Los Angeles County."

To further confuse the issue, the Fourth Report then says "In 1869, the first work was done at Pico Canon by Mr. Hughes, who put down a spring-pole well called the Pico Well." This is two pages after the report said that Hughes sunk a well in 1866. Also from the Fourth Report: "In 1874 Messrs. Temple, Moore, and Pico worked in Pico Canon. The oil they obtained was sent to the refinery at Lyons Stations..."

In 1875 Charles Mentry, an experienced Pennsylvania oil driller, leased the Baker and Beale claim at Pico Springs, and put together a partnership with Denton C. Scott and John G. Baker. Baker would later sell out to Christopher Leaming. In 1875, Mentry put down his first well with a spring pole and got a good flow of oil. The partnership also drilled two other wells.

From Division of Oil, Gas, and Geothermal Resources (DOGGR) records (with data they copied from the original California Star Oil Works records written by Charles A. Mentry):
CSO 1 - Commenced drilling August 22, 1875, Completed drilling September 1875 - "Well was drilled to 120 ft. with spring-pole rig. At 30 ft. produced about two bbls. per day by sand pumping. This oil was in shale. At 120 ft. pumped 10 to 12 bbls. per day. In 1877 got an engine and deepened well to 600 ft. At 175 ft. it pumped 30 bbls. per day. In 1882 deepened again to 735 ft. but without any benefit. The best sand-rock was at 170 ft."

CSO 2 - Commenced drilling Oct. 13, 1875, Completed drilling Nov. 29, 1875 - "Well was drilled to 140' with a spring pole rig. Struck first oil at 73'. At 85' pumped six barrels per day. At 140' pumped 13 barrels per day but did not pump all the time as there was not sufficient market for the oil, so well was permitted to flow about a year. Deepened with a large rig in 1877. At 250' had the best sand rock encountered and well flowed 20 to 25 bbls. per day. At 525' pumped 40 barrels per day. In 1882 deepened to 830' but no more oil."

CSO 3 - Commenced drilling December 1875 - "Well was drilled with a spring-pole rig to 170'. Got a little oil at 28'. Struck first oil at 65'. At 90' pumped 4 bbls. per day. At 145' pumped 8 bbls. per day, and at 170' 11 bbls. Well never deepened as it was too close to wells 1 and 2. After about a year-and-a-half, production dropped to a barrel a day when pumping was discontinued and rig taken down."
In February of 1876, Lyon (a minority owner of the Beale and Baker claim) drilled a 170 foot well near the three Mentry wells (from White, 1962). In 1875, Robert C. McPherson owned abour 200 acres of mining claims in Pico Canyon east, and above, Pico Springs. In December of 1875, the San Francisco Petroleum Company was organized by McPherson and Robert C. Page. McPherson gave the claims to the company. In 1876 a Farrar & Trefts engine was used to drill this company's first well. Unfortunately, the tools got stuck in the well and could be retrieved. The same fate also happened to their second well.

In June or July of 1876, the Mentry partnership sold out their interests (the Pico Spring lease from Beale and Baker) to the newly formed California Star Oil Works Company of San Francisco headed by Demetrius G. Scofield. CSOW also bought out the claims of Pico, Wiley, Gelcich, and Lyon. This became the nucleus of the new company, which Scofield had organized with the backing of his firm of Frederick B. Taylor and Company. Mentry was hired as the superintendent, a position he held until his death in 1900. CSOW obtained permission to drill on the Pico lease from Beale and Baker.

In August of 1876, Mentry started CSO (or Pico, the original name) 4 with the first steam engine used at Pico Springs (AB Perkins, The Story of our Valley, Sept. 18, 1954). According to White (1962, p.39), an old steam rig that had once belonged to a Tom Scott Company was used. (The first steam engine used in the Newhall oil district was in 1874 on the Temple claim in Towsley Canyon and the first steam engine in the Pico Canyon area was on the San Francisco claim above Pico Springs drilled earlier in 1876.)

According to A.W. Lyon, Sanford's son (Ripley, Quarterly, Historical Society of Southern California, June 1948), CSO 4 was the site of Sanford Lyon's 1869 well. However, Perkings (Pico Canyon Chronicles, 1985) shows a map dated September 14, 1880, from the Los Angeles Hall of Records that shows that the two wells were close to each other, but not the same.

From DOGGR records for CSO 4 (with data they copied from the original California Star Oil Works records written by Charles A. Mentry):
CSO 4 - Commenced drilling August 1876, Completed drilling Sept. 26, 1876 - "Caved badly at 270'. First oil at 250' in shale. Tubed and pumped at 370', producing 25 barrels daily for some time. In August, 1877, commenced to deepen well. At 560' the well was flowing 70 barrels daily, and was still flowing in April, 1879 when it was rigged for pumping. In 1885 it was deepened from 610 to 1030' but it is thought the only good attained was in consequence of cleaning it out."
CSO 4 would became the first commercially successful oil well west of Pennsylvania and eventually the longest running commercial oil well in the world (1876-1989, 113 years).

Scofield realized that his California Star Company was under-capitalized. He was able to interest Senator Charles N. Felton, Lloyd Tevis, and others, into forming a new company. On September 10, 1879, the Pacific Coast Oil Company was formed with Felton as the president and Scofield as the vice-president. At first, they began drilling on the claims (Menlo and Belmont) just east of the Pico claim. Felton has evidently purchased the San Francisco Petroleum Company's claims sometime in 1879. After a court battle (starting on March 22, 1878 and ending on June 28, 1879) between PCO and Pico claim holders Beale and Baker, who claimed CSOW violated the terms of their lease by failing to operate the company in a workmanlike manner, CSOW was split, with PCO owning 4/7 of CSOW and Beale and Baker owning 3/7. Since there were two separate companies (and Beale and Baker were entitled to CSOW profits), the well numbering was separate. Hence there are both CSO wells and PCO wells. In fact, before 1883 the PCO wells were either named "San Fernando" or "San Francisco Petroleum" and were later changed to PCO numbers.

The success of CSO 4 led to the construction of a refinery at Lyon's Station stage stop 9 miles from Pico Canyon in 1874. In 1877 it was moved to Andrew's Station so that it could be near the Southern Pacific Railroad train stop. From there, it could be refined and shipped out to San Francisco, where the demand for oil was.

In 1879, California's first oil pipeline, 2-inches in diameter and about 7 miles long, was laid from Pico Canyon to the refinery. Oil flowed by gravity and partly by pumping (Scientific Amerian Supplement No. 610, 9/10/1887). The pipeline was also used to carry water, using a pump, to the canyon until the end of 1881 (White, 1962, p.80), when a new 4 mile long pipeline was laid for water from the Santa Clara River northwest of Pico Canyon. At the same time, a 1300 barrel water tank was built on the "rim" of the canyon where water could be distributed to the area. As more wells were being drilled, more water was needed for the steam boilers that generated the power well engines. Eventually, natural gas from the wells themselves was used to power the most of engines.

In 1880, PCO built a new, larger capacity refinery at Alameda in the San Francisco area. Both the Newhall and Alameda refineries were used. The Newhall refinery was finally shut down in 1888 or 1890.

In 1883 the Hardison and Stewart Oil Company leased land from PCO east of the existing wells and drilled three wells, only one of which produced any oil (see part of the DOGGR well record at the bottom of this page). However, it was ruined by water. In 1884, they also drilled Star No. 1 which was located on a small lease on CSO Hill above CSO 5. The lease location required the construction of a bridge 105 feet long and 45 feet high - the "Long Bridge." The first oil flowed on November 26, 1884 and became very successful, but the terms of the lease with PCO was in question. In February of 1885, Hardison and Stewart agreed to $1.50 a barrel for the Star and one Hill well from PCO. However, they never drilled on the Pico claim again. They keep their interest in these two wells until February 1, 1889, when well records show that CSOW bought them out. Wallace Hardison and Lyman Stewart would move to Santa Paula, join up with Thomas Bard, and later form the Union Oil Company in 1890.

The well records (from the Division of Oil, Gas, and Geothermal) show that on August 11, 1889, PCO 17 was started using the first diamond bit in California. The Western Prospecting Co. of Denver was contracted to drill at $3.50 a foot. Unfortunately, at 60 feet the hole they could not continue. The diamond bit could not handle the cobbles in the surface formation and the well had to be completed with cable-tools. On September 23, 1889, the Western Prospecting Co. tried their diamond bit again on CSO 19 and completed the well on November 30. However, the production of about 6 bpd was not good enough. Evidently the shale drillings were being forced by water pressure (which was being constantly pumped into the well for the diamond drill method) into the oil sands cementing the sand. After re-drilling with cable-tools, production rose to about 21 bpd. The Catalogue of the State Museum of California reports that they received the core of a diamond drill from Well No. 19 in Pico Canyon on October 14, 1889. In 1892, CSO 21 was straightened using the diamond drill at 765 feet.

The well records also show that there were a lot of problems with crooked holes. These were caused by the steep dip of the Pico anticline. The drill bits would tend to follow the dip of the beds. Sometimes the whole cable-tool string (which could be 20 to 40 feet in length) would get stuck in the hole and would have to be "fished" out. Sometimes the tools could not be retrieved and the hole would have to be abandoned. There were also a lot of problems with cave-ins and water flooding the hole. In January of 1888, the drilling of PCO 9 was interrupted for 15 days due to a landslide. In 1897, while pulling the casing from the hole of CSO 26, somehow the rig caught fire and burned down. In 1892, while drilling CSO 22, gas ignited at the boiler, burned down the rig, and badly burned many men. On July 25, 1940, a brush fire burned down 10 old wooden derricks (PCO 2, 13, 17, 18, 19, 24, 25, 29, 34, and 36).

The development of Pico Canyon continued on. By the end of 1884, the boundary limits to the Pico field had been established. Under Mentry, about 70 wells were drilled between 1876 and 1900 (the year of his death).

In December of 1893, PCO paid the widow of Dr. Gelcich (1828-1885) $7000 for a quitclaim to any rights he still had for his Pico claims. They were evidently still a little nervous about their ownership of the claim.

In December of 1900, Standard Oil (New Jersey) bought Pacific Coast Oil Company for about $761,000. In 1901, PCO bought out CSOW, totally taking over the Pico claim. In 1906, PCO and Standard Oil (Iowa) were consolidated and on July 23 their names were changed to Standard Oil (California). On November 15, 1906, the US Government filed suit under the Sherman Antitrust Act against Standard Oil (New Jersey), its subsidiaries (which included Standard Oil of California) and affiliates, and John D. Rockefeller. After a long court battle, on May 15, 1911, the US Supreme Court ruled in favor of the government and ordered the breakup of Standard Oil. In December of 1911, Standard Oil of California became a separate company. In 1977, Standard Oil changed their name to Chevron. In 2001, they became ChevronTexaco, but in 2005 they dropped the Texaco and again became Chevron.

By 1910, development in Pico Canyon was virtually done. From 1876 to 1910, 79 wells had been drilled. From 1910 to 1960, 12 wells were drilled. After 1960, 8 wells were drilled. In May of 1940, Standard Oil of California officially shut down most of its operations in Pico, Towsley, and Wiley Canyons.

Shut down or not, in 1944, Standard drilled PCO 42 near the axis of the Pico anticline in the eastern part of the field to a depth of 8258 feet with poor results. In 1948, CSO 101 was drilled (why they skipped CSO 33 - CSO 100 I don't know). In the 1960's, CSO 102, 103, 105, 106, and 107 were drilled, mostly as part of an unsuccessful water injection program. In 1969, CSO 108 was the last well drilled in Pico Canyon.

After Mentry's death in 1900, Walton Young took over as superintendent until 1927. From 1927 - 1937 Charles Sitzman was the superintendent. After Sitzman, John Blaney took over for one year. After Blaney, there were no more superintendents, only foremen or caretakers.

The last production of CSO 4 was 1 bpd in 1989, after a world record of 113 years of production. In February of 1990, CSO 4 was officially plugged and abandoned. So as to not affect the well's status as a National Historic Landmark, Chevron received special permission from DOGGR to leave pipes on the surface at the wellhead, although the pump was removed. See the CSO 4 Area webpage for photos.

The best year for Pico Canyon was 1933 when production was 23,600 barrels of oil.

In 1995, Chevron sold over 3000 acres to the Santa Monica Mountains Conservancy. This included portions of Pico, Towsley, Wiley, Leaming, Rice, and East canyons. All the Pico property was sold including CSO 4 and Mentryville.

A note on well names: I am trying to stick to the last name of the well. The original wells in the Pico claim were named "Pico", for example Pico 4. About 1902, when PCO (the new Standard Oil NJ subsidiary) took over, the "Pico" name was changed to "CSOW". Sometime in the early 1960's the name was shorted to "CSO" by Standard Oil.

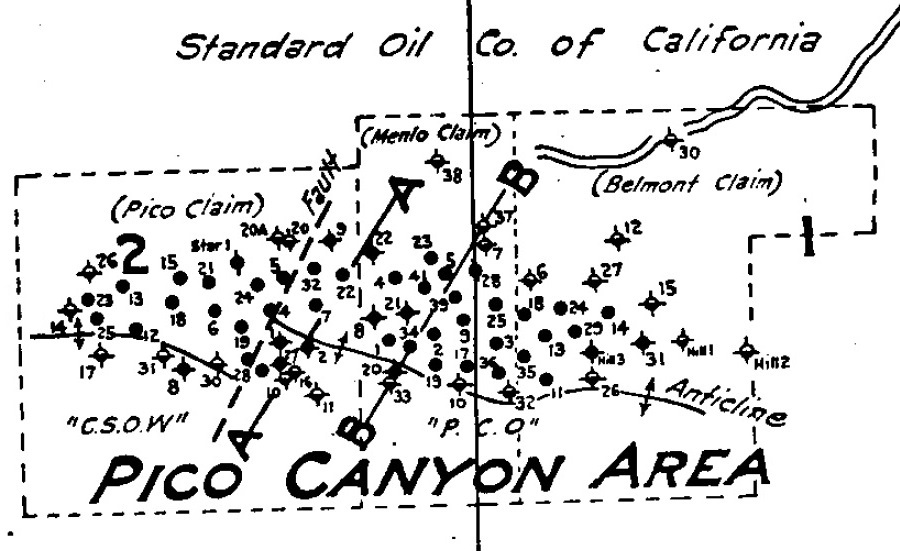

Pico Canyon Claims (from Wallings 1934). The Pico Oil Spring Mine was patented on April 19, 1880 to Robert S. Baker and E. F. Beale. The Menlo Oil Mine was patented on October 8, 1890 to Occidental Asphalt Company. The Belmont Oil Mine was also patented on October 8, 1890 to Occidental Asphalt Company. Occidental Asphalt was a company incorporated in Nevada in June of 1883 by Charles N. Felton (the president of PCO) and Lloyd Tevis (one of PCO's co-founders). For some reason they did not want to use PCO directly to patent the claims.

A note on patents: A patented claim is one for which the federal government has issued a patent (deed). The owner of a claim must prove to the federal government that the claim contains locatable minerals that can be extracted at a profit. A patented claim can be used for any purpose by the owner. With a patented claim you own the land as well as the minerals. Since October 1, 1994, the BLM has been prohibited by Acts of Congress from accepting any new mineral patent applications.

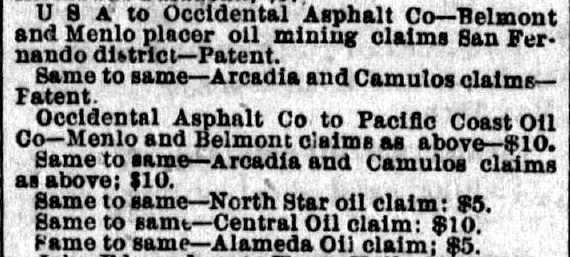

This clipping from the Los Angeles Herald of June 14, 1892, disagrees with Wallings' patent dates (assuming the newspaper date is close to the patent date). Here the Belmont, Menlo, Arcadia, and Camulos claims were patented to the Occidental Asphalt Company and then sold to the Pacific Coast Oil Company for nominal fees.

Table of the wells drilled in Pico Canyon:

(From Walling, 1934, and from DOGGR records)
Last well No. Drilled By Original Well No. Year Drilled Original/max depth(ft) Initial Prod. (bpd) Remarks
C.S.O. 1 California Star Oil Works Pico 1 1875 120/735 10-12 At 175ft flowed 30 bpd
C.S.O. 2 California Star Oil Works Pico 2 1875 140/830 13 No oil below 525ft
C.S.O. 3 California Star Oil Works Pico 3 1875 170/170 11 11 bpd at 170ft. Never deepened, too close to 1 and 2. Production dropped to 1bpd, rig taken down in 1877.
C.S.O. 4 California Star Oil Works Pico 4 1876 370/1400 25 At 560ft flowed 70 bpd
C.S.O. 5 California Star Oil Works Pico 5 1880 1106/1450 ? 1887 pumped 25 bpd. In 1893 used diamond drill to try to straighten out the hole.
C.S.O. 6 California Star Oil Works Pico 6 1880 1050/1605 ? 1887 pumped 25 bpd
C.S.O. 7 California Star Oil Works Pico 7 1881-82 850/1696 ? At 250' flowed 40 bpd
C.S.O. 8 California Star Oil Works Pico 8 1883-84 1090/1090 10 3 holes drilled
C.S.O. 9 California Star Oil Works Pico 9 1882 1555/1565 ? 1887 pumped 35 bpd
C.S.O. 10 California Star Oil Works Pico 10 1882-83 975/975   Junked with tools
C.S.O. 11 California Star Oil Works Pico 11 1882-83 1450/1450   Pumped 150-200 bpd water
C.S.O. 12 California Star Oil Works Pico 12 1883 1110/1400 ? Pumped 85 barrels first 24 hrs
C.S.O. 13 California Star Oil Works Pico 13 1883-84 1500/1759 80 1887 pumped 40 bpd
C.S.O. 14 California Star Oil Works Pico 14 1883-84 1500/1500   Abandoned while drilling
C.S.O. 15 California Star Oil Works Pico 15 1888 1590/1850 ? No record of production
C.S.O. 16 California Star Oil Works Pico 16 1875 120/735 10-12 At 250' flowed 25 bpd
C.S.O. 17 California Star Oil Works Pico 17 1888-89 940/940   Never produced
C.S.O. 18 California Star Oil Works Pico 18 1889 1128/1545 ? 1917 producing 3 bpd
C.S.O. 19 California Star Oil Works Pico 19 1889-90 800/890 20 First well in CA drilled with diamond drill method. 1890 producing 15 bpd
C.S.O. 20 California Star Oil Works Pico 20 1891-92 1465/1465   Junked, edge well
C.S.O. 20A California Star Oil Works Pico 20A 1892-93 1730/1730   Junked, edge well
C.S.O. 21 California Star Oil Works Pico 21 1892 1525/1730 33 Little water encountered while drilling
C.S.O. 22 California Star Oil Works Pico 22 1892 1490/1860 58 1917 producing 10 bpd
C.S.O. 23 California Star Oil Works Pico 23 1892-94 1525/1525 16 1917 produced 2.5 bpd
C.S.O. 24 California Star Oil Works Pico 24 1896 1605/2045 ? 1917 produced 3.6 bpd
C.S.O. 25 California Star Oil Works Pico 25 1896-97 1500/1500 ? Pumped 70 barrels first day
C.S.O. 26 California Star Oil Works Pico 26 1897-99 1630/1630   Junked, edge well
C.S.O. 27 California Star Oil Works Pico 27 1898 1010/1010 ? 1917 produced 1 bpd
C.S.O. 28 California Star Oil Works Pico 28 1898 1320/1320 ? 1917 produced 2 pbd
C.S.O. 29 California Star Oil Works Pico 29 1898-99 1155/1155 ? 1917 produced 1 bpd
C.S.O. 30 California Star Oil Works Pico 30 1899 1060/1060   Abandoned while drilling
C.S.O. 31 California Star Oil Works Pico 31 1899 1240/1240 ? No record of any water while drilling
C.S.O. 32 California Star Oil Works Pico 32 1903-05 3090/3445 ? 1917 pumped 10 bpd. Converted to waste water disposal well in 1960. Abandoned in 1967.
C.S.O. 101 Standard Oil Co C.S.O. 101 1948 2068 ? Abandoned 1990; 8/89 produced 9bpd
C.S.O. 102 Standard Oil Co C.S.O. 102 1960 2400 ? Abandoned 1990; 1965 converted to water injection well
C.S.O. 103 Standard Oil Co C.S.O. 103 1963 1888 ? Abandoned 1980; 1965 converted to water injection well
C.S.O. 104 Standard Oil Co C.S.O. 104 ? ? ? No records at DOGGR
C.S.O. 105 Standard Oil Co C.S.O. 105 1965 1622 ? Abandoned 1990; 1966 converted to water injection well
C.S.O. 106 Standard Oil Co C.S.O. 106 1965 1750 ? Last production 1 bpd in 1986. Abandoned in 1990
C.S.O. 107 Standard Oil Co C.S.O. 107 1965 1900 ? Last production 1 bpd 1989. Abandoned in 1990
C.S.O. 108 Standard Oil Co C.S.O. 108 1969 2195 ? Abandoned in 1980
Star 1 Hardison & Stewart Star 1 1884-85 1650/1680 35 1887 pumped 30 bpd
Simi 1 California Star Oil Works Simi 1 1883-84 1300/1300   Outpost well, abandoned while drilling
Newhall Land & Farming 1 Standard Oil Co. of Ca.   1907-08 1750/1750   Outpost well, abandoned while drilling
P.C.O. 1 Pacific Coast Oil San Fernando 1 1881-82 1176/1695 ? 1887 pumped 20 bpd
P.C.O. 2 Pacific Coast Oil San Fernando 2 1882 1280/1280 ? 1887 pumped 40 bpd
P.C.O. 3 Pacific Coast Oil San Fernando 3 1882-83 1386/1870 ? 1887 pumped 25 bpd
P.C.O. 4 Pacific Coast Oil San Fernando 4 1882-83 1400/1910 ? 1887 pumped 18 bpd
P.C.O. 5 Pacific Coast Oil San Fernando 5 1882-83 1510/1510 ? 1887 pumped 18 bpd
P.C.O. 6 Pacific Coast Oil San Fernando 6 1883-85 2330/2330 ? 1887 pumped 10 bpd
P.C.O. 7 Pacific Coast Oil San Fernando 7 1882-83 1880/1880 ? Abandoned while drilling
P.C.O. 8 Pacific Coast Oil San Fernando 8 1886-87 1345/1408 ? 1887 pumped 60 bpd
P.C.O. 9 Pacific Coast Oil San Fernando 9 1887-88 1065/1330 ? No record of production
P.C.O. 10 Pacific Coast Oil San Francisco Pet 1   840/840 ? No records
P.C.O. 11 Pacific Coast Oil San Francisco Pet 2 1881 1515/1515 ? 1887 pumped 5 bpd
P.C.O. 12 Pacific Coast Oil San Francisco Pet 3 1882-83 1360/1360   Abandoned while drilling
P.C.O. 13 Pacific Coast Oil San Francisco Pet 4 1883 1545/1700 ? 1887 pumped 40 bpd
P.C.O. 14 Pacific Coast Oil 14 1888 975/1530 50 1890 pumped 15 bpd
P.C.O. 15 Pacific Coast Oil 15 1889 1220/1220   Abandoned, could not shut off water
P.C.O. 16 Pacific Coast Oil 16       Never drilled
P.C.O. 17 Pacific Coast Oil 17 1889-90 840/1523 ? 1917 pumped 1.6 bpd
P.C.O. 18 Pacific Coast Oil 18 1890 1200/1770 50 1893 pumped 8.5 bpd
P.C.O. 19 Pacific Coast Oil 19 1890 640/1325 ? 1917 pumped 2 bpd
P.C.O. 20 Pacific Coast Oil 20 1890 495/495 ? No record of production
P.C.O. 21 Pacific Coast Oil 21 1890 1055/1715 ? No record of production
P.C.O. 22 Pacific Coast Oil 22 1890 1575/1935 ? No record of production
P.C.O. 23 Pacific Coast Oil 23 1896-97 1810/1810 ? 1917 pumped 6 bpd
P.C.O. 24 Pacific Coast Oil 24 1890-91 1050/1550 ? 1917 pumped 3 bpd
P.C.O. 25 Pacific Coast Oil 25 1891 1195/1610 60 1893 pumped 14.5 bpd
P.C.O. 26 Pacific Coast Oil 26 1891 943/943   Abandoned, could not shut off water
P.C.O. 27 Pacific Coast Oil 27       No records
P.C.O. 28 Pacific Coast Oil 28 1892-93 1610/1610 88 1893 pumped 32 bpd
P.C.O. 29 Pacific Coast Oil 29 1892 1555/1555 ? 1917 pumped 4.7 bpd
P.C.O. 30 Pacific Coast Oil 30 1895 1165/1165   Abandoned, could not shut off water
P.C.O. 31 Pacific Coast Oil 31 1892-93 1200/1650 ? Abandoned
P.C.O. 32 Pacific Coast Oil 32 1894-95 1600/1600   Abandoned
P.C.O. 33 Pacific Coast Oil 33 1899 1135/1135   Abandoned while drilling
P.C.O. 34 Pacific Coast Oil 34 1899-1900 1912/1912 ? 1917 pumped 3 bpd
P.C.O. 35 Pacific Coast Oil 35 1900-01 1190/1190 ? 1917 pumped 3 bpd
P.C.O. 36 Pacific Coast Oil 36 1901-02 1419/1419 ? 1917 pumped 1.6 bpd
P.C.O. 37 Standard Oil Co 37 1907 1950/1950 ? No record of production
P.C.O. 38 Standard Oil Co 38       No records
P.C.O. 39 Standard Oil Co 39 1909-10 1425/1580 ? 1917 pumped 4.5 bpd
P.C.O. 40 Standard Oil Co 40 1909 1128/1128   Abandoned while drilling
P.C.O. 41 Standard Oil Co 41 1916 2201/2201 ? 1917 pumped 16.5 bpd
P.C.O. 42 Standard Oil Co 42 1944 8258 ? Abandoned 1984 - never produced
P.C.O. 43 Standard Oil Co 43 1965 2000 ? Abandoned 1985
Hill 1 Hardison & Stewart Hill 1 1882-83 1850/1850   No oil, lost tools, abandoned
Hill 2 Hardison & Stewart Hill 2 1883-84 1050/1050   Lost tools and abandoned
Hill 3 Hardison & Stewart Hill 3 1884 1550/1550 5 Water broke in 1887 killing production

"In the Vale of San Fernando Long Ago" (excerpt)
by Sergeant Cyrus C Johnson (Valley Division of LAPD)
(From the Van Nuys News - 10/28/1927)

In the depths of Pico Canyon, half a century ago,
Mentre drilled, to lakes of ebon that the liquid gold might flow,
There, the first oil-well still faithfully brings its offering from below,
It supplied the Mission fires long ago.

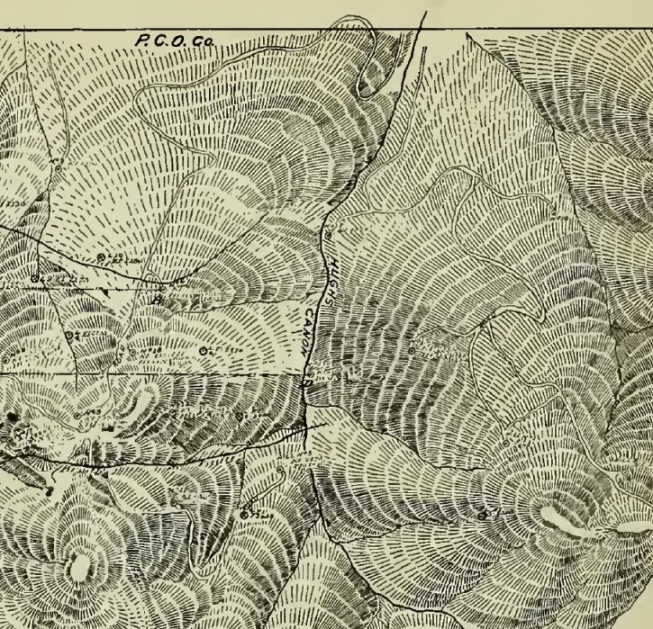

This is part of a relief map by Edward North called "Oil Fields in Pico Canyon" from the "Tenth Annual Report of the State Mineralogist for the Year Ending December 1, 1890" by the California State Mining Bureau. It shows Hughes Canyon. See here for the complete map in PDF form (3.3 MB).

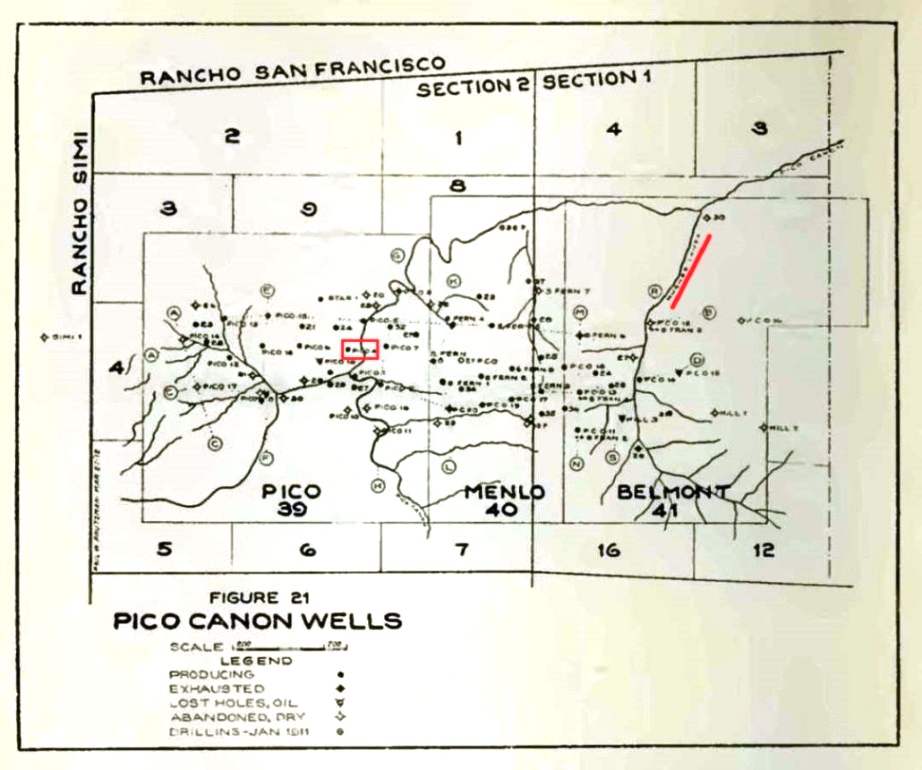

This map showing the Pico, Menlo, and Belmont claims is from Petroleum in Southern California, California State Mining Bureau Bulletin 63, 1913, by Paul Prutzman. CSO 4 is circled in red. The tributary canyon that flows into Pico Canyon at Johnson Park is called Hughes Canyon (underlined in red).

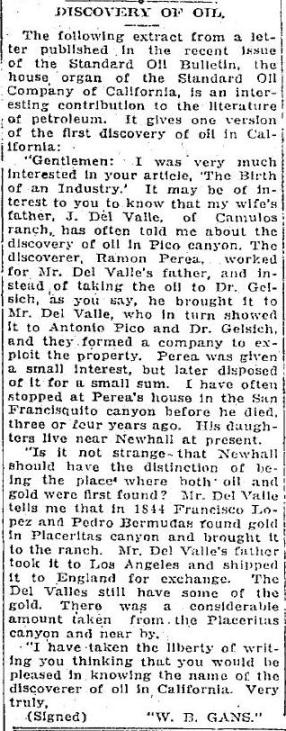

From the Oakland Tribune of 11-4-1918 comes support for the del Valle account of the discovery of oil.

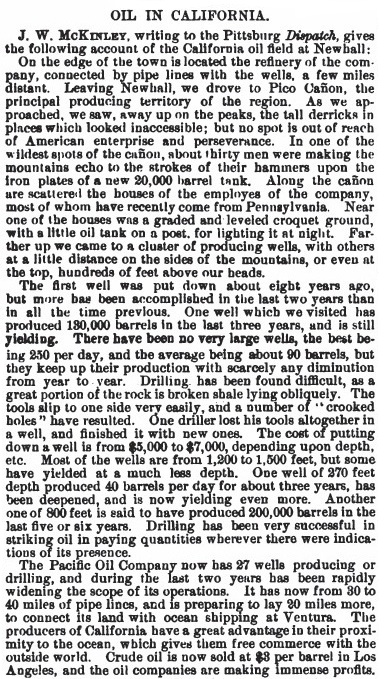

Pico Canyon visitor account from 1884 (Scientific American Supplement, Vol. XVII, No. 430, March 29, 1884, p. 6870)

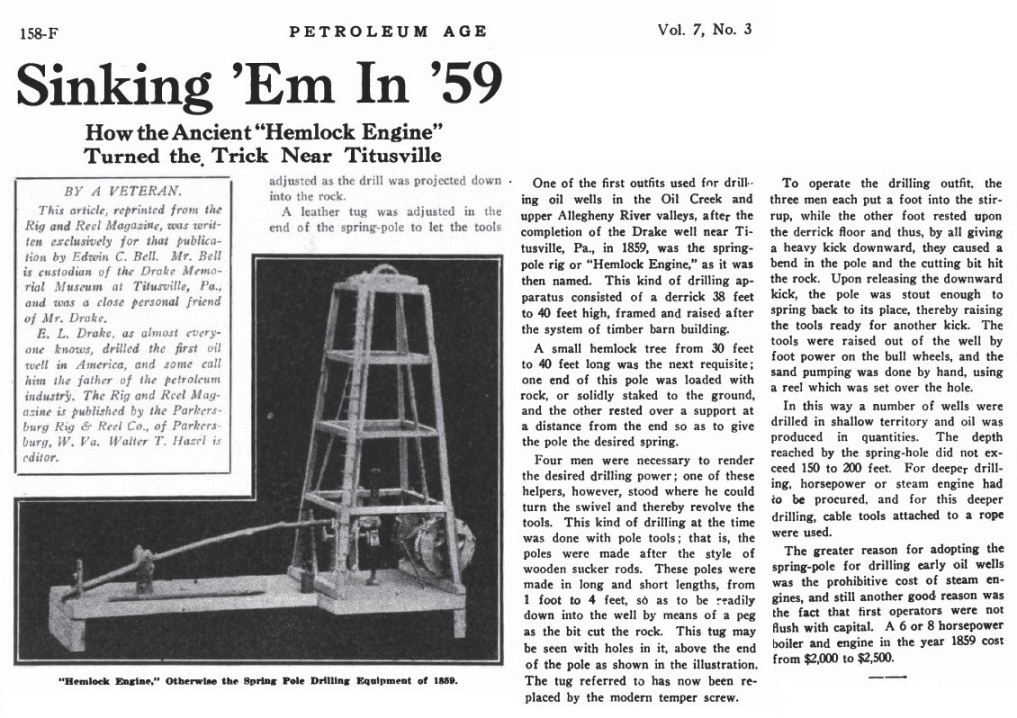

Here is a model spring pole rig from the Petroleum Age magazine of March 1920. The first three Pico wells were drilled using a spring pole. This model sure looks like one shown in the historic photos page for either Pico 3 or the Sanford Lyon well.

Hemlock (or Hickory) Engine - (Spring Pole method) A primitive method in which a small hemlock tree would be bent over and held there by a yoke. Then two men would throw their weight into stirrups, driving the bit down (or easing the tension to let it fall) and then letting the spring of the sapling pull up again. Such a rig was derisively call a "hemlock engine".

For more information on spring pole rigs, here is a report from the School Of Mines Quarterly of November, 1894, entitled "Spring-Pole Drilling" by Edgar Tuttle.

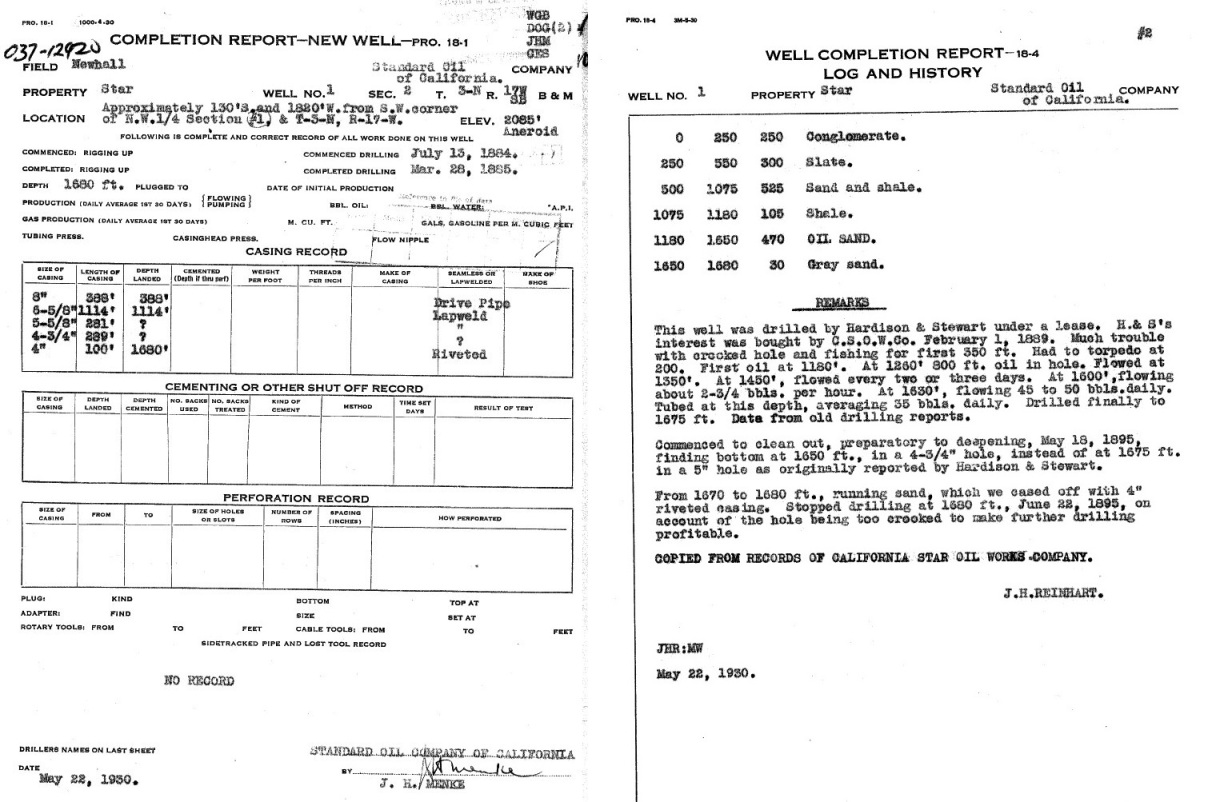

Two pages from the DOGGR well records for the Star 1 well
